Dynamic Status Chart gadget

Dynamic Status Chart gadget helps teams track how work item statuses change over time.
It gives a clear visibility into workflow progress and delays.

Using it, you'll receive the number of work items for each day of the specific Sprint or Project in a particular status.

Configuration

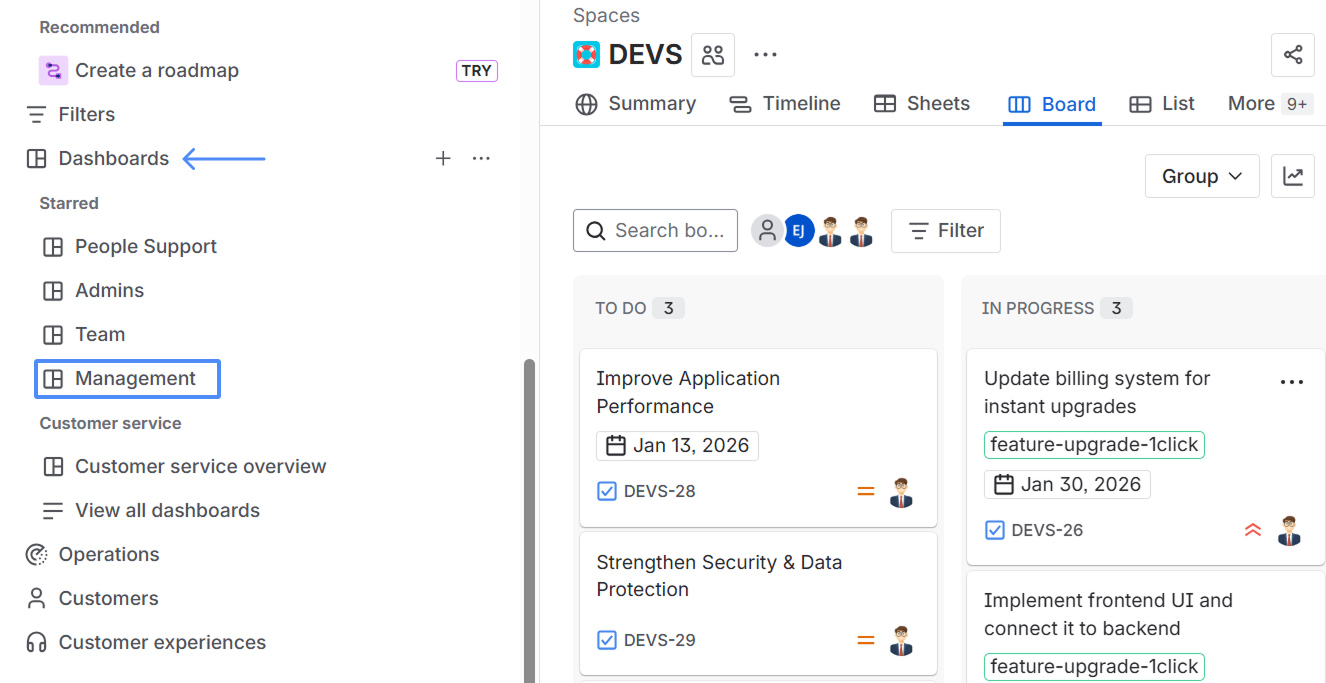

1. Open your Jira dashboard (or create one if you don’t have it).

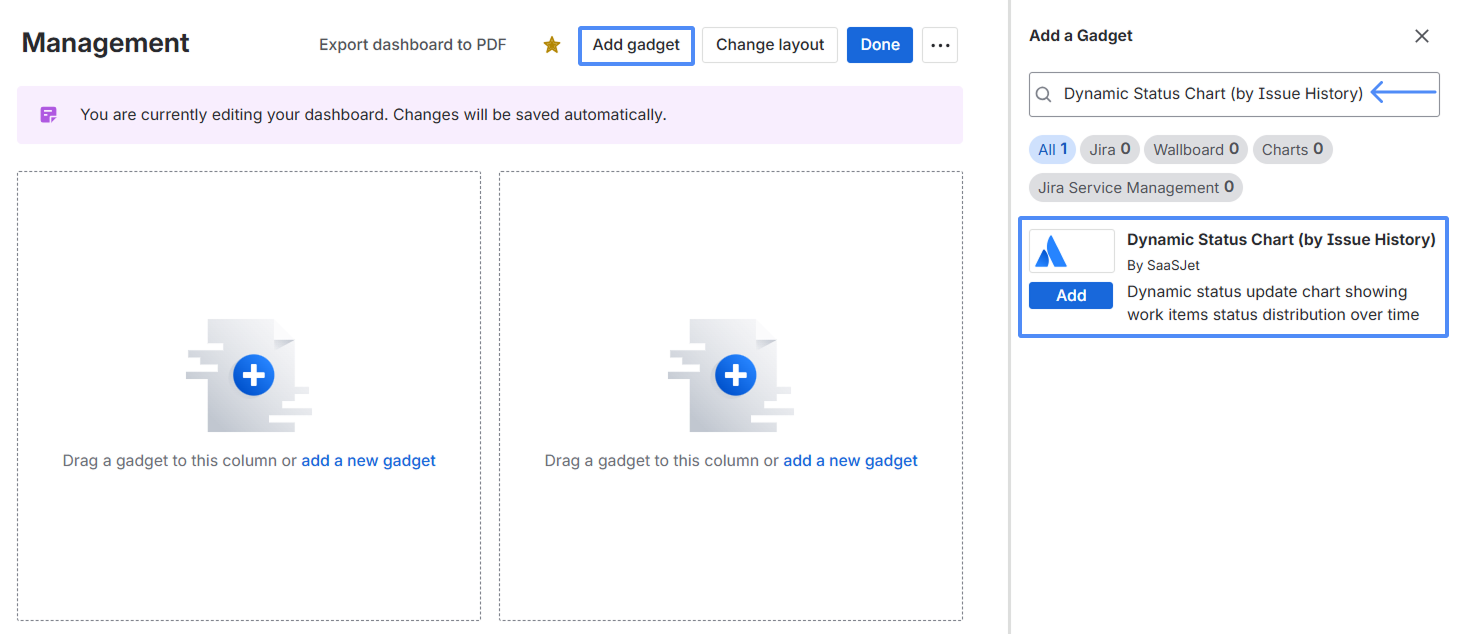

2. Add Dynamic Status Chart (by Issue History) gadget to your dashboard. To do that, click Add gadget, then choose Dynamic Status Chart (by Issue History) and click the Add button.

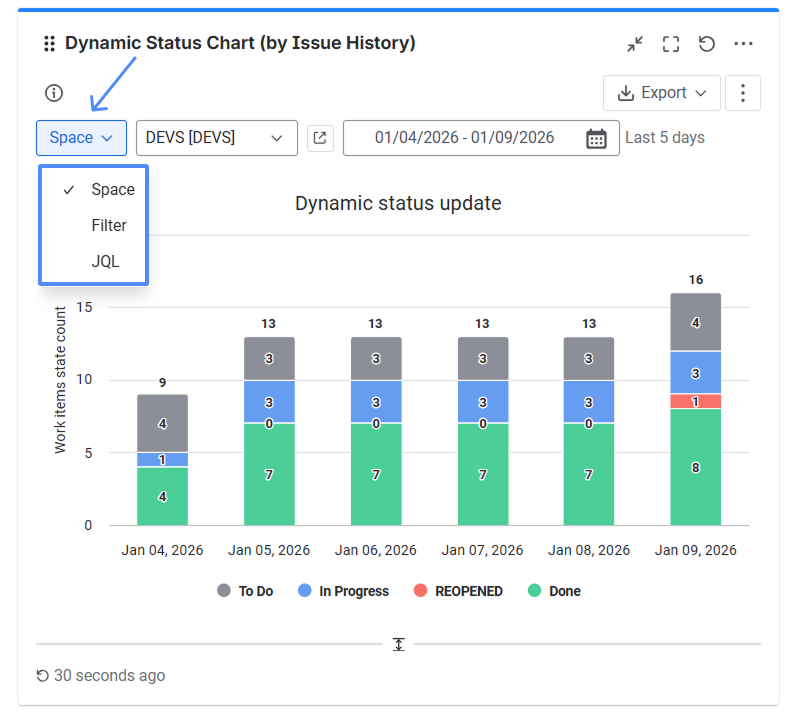

3. There are three options for selecting work items: Filter, Space, and JQL. Choose the one you need and the following items accordingly.

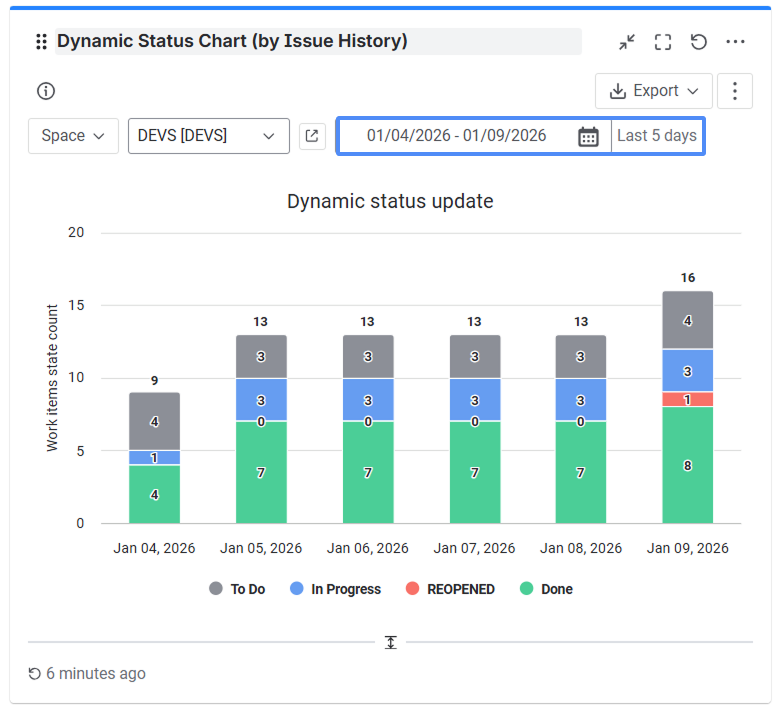

4. Set the needed date range.

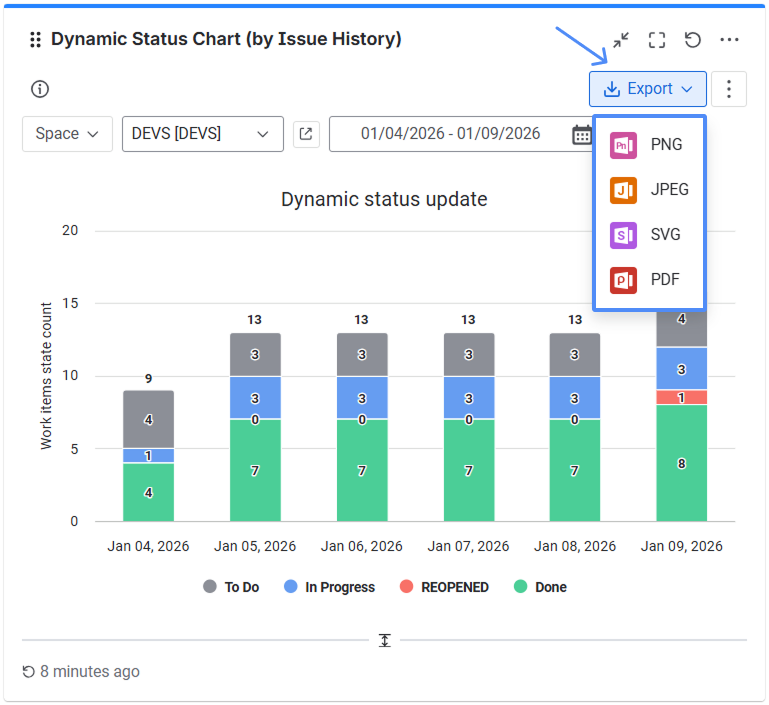

5. Export the chart in PNG, JPEG, SVG, or PDF format.

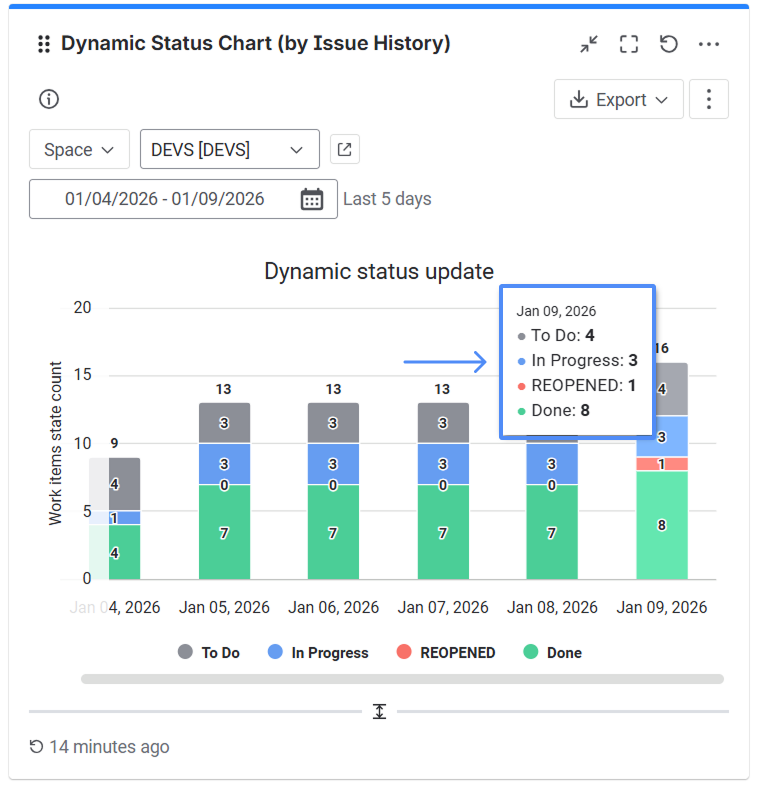

This chart report provides an overview of your team's progress. The columns in the chart show work items with statuses according to your workflows.

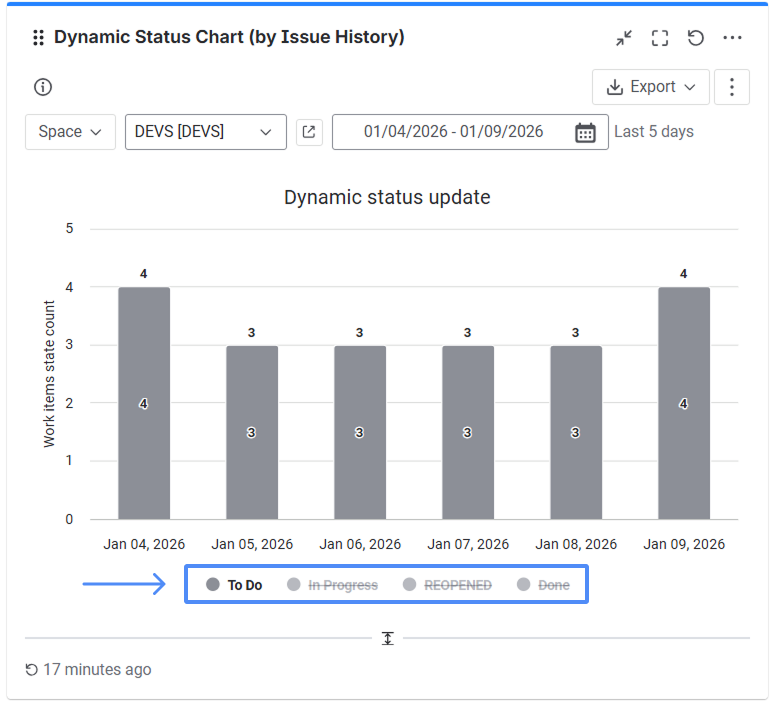

Below the chart, you can select a filter by one or more statuses. For example, you should know the number of tasks in the To Do status:
