Time in Status Data Export Through API - Google Sheets

This guide explains how to export Time in Status report data via API and automatically import it into Google Sheets.

Overview

With the API-based data feed:

  • Data is generated on demand when the API is called

  • Access is secured via OAuth tokens

  • The response format remains JSON

  • You can connect it directly to Google Sheets using Apps Script

πŸ” Step 1: Enable API Access

  1. Go to Jira Administration

  2. Navigate to:
    Connected Apps β†’ Time in Status

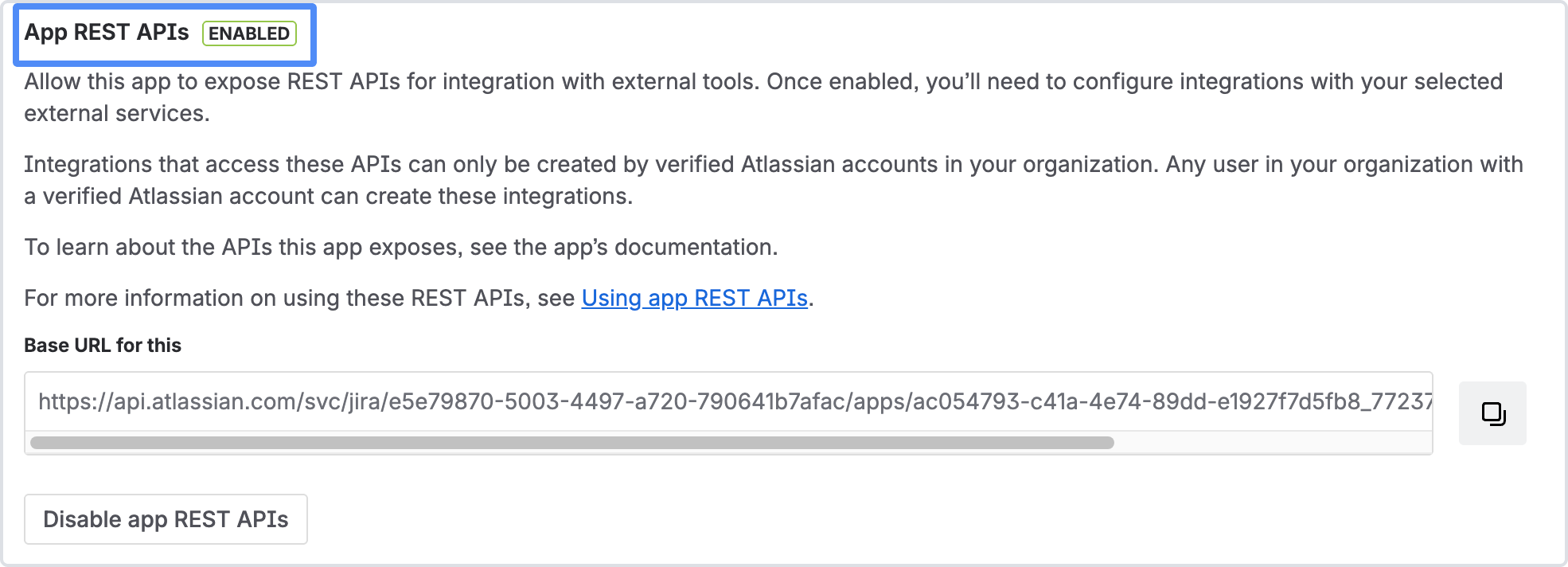

  3. Enable REST API

  1. Open your Time in Status report

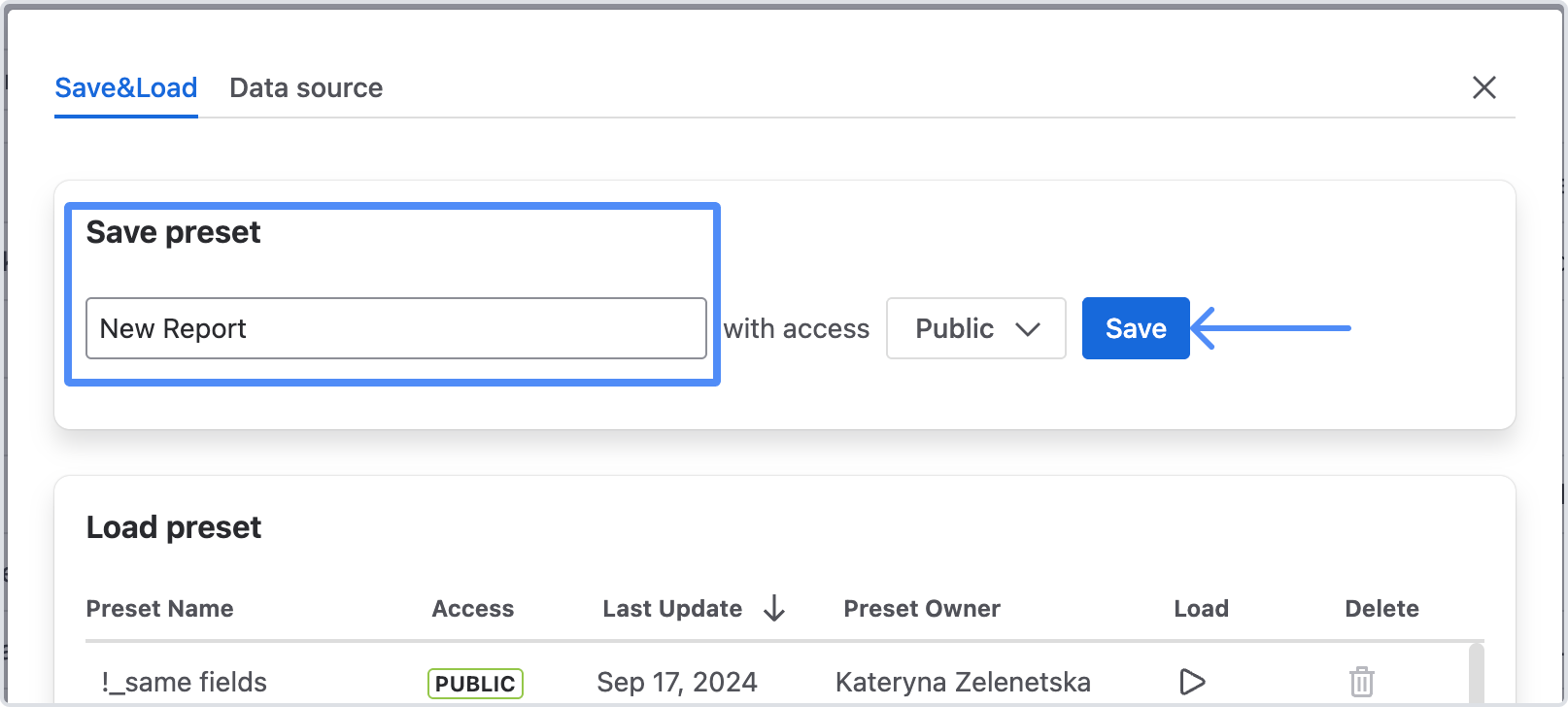

  2. Save your preset

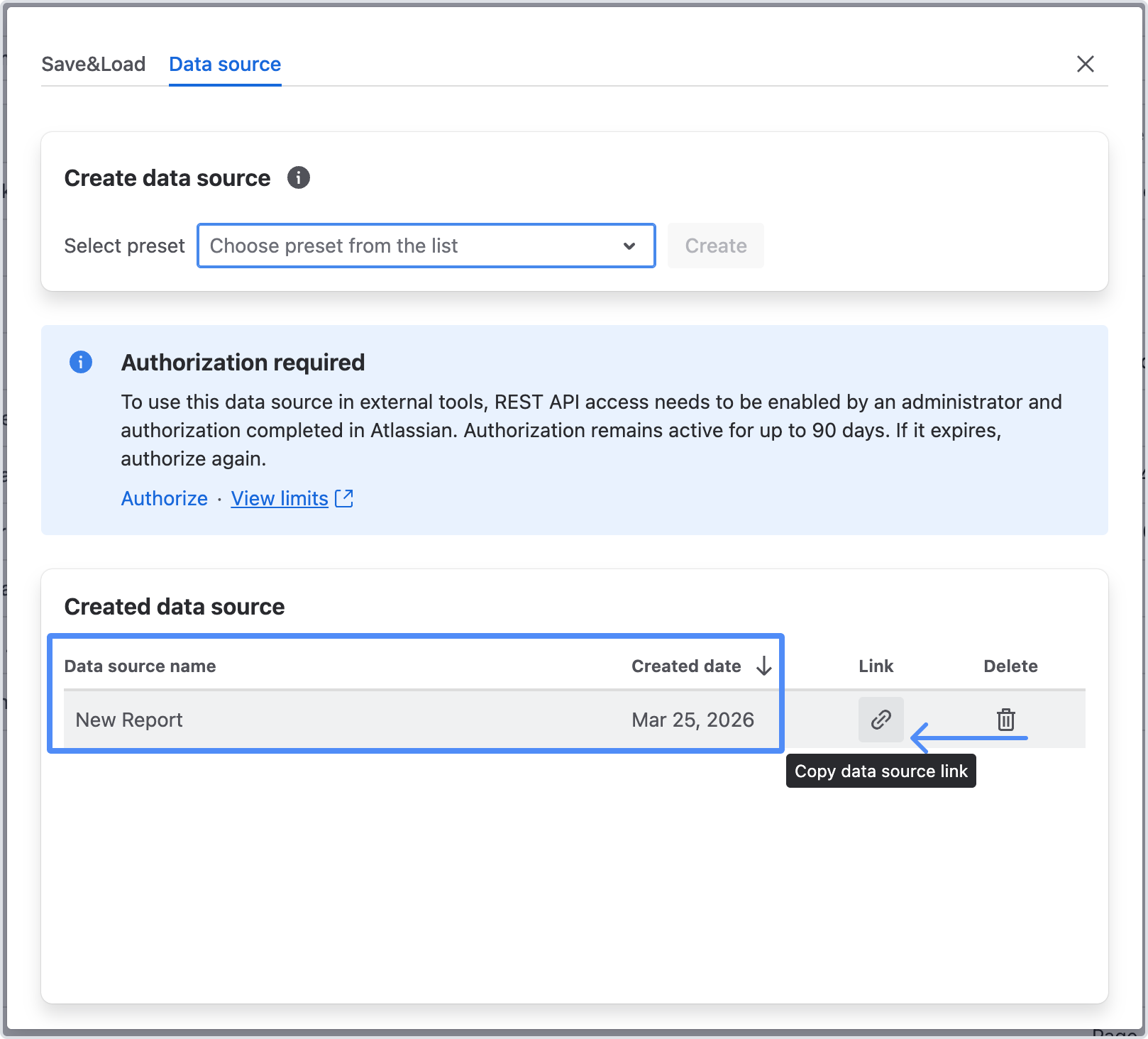

  3. Open the Data Feed window

  4. Click Generate link

πŸ‘‰ You will receive a new API URL like:

CODE
https://<site-name>/gateway/api/svc/<product>/apps/<app-id>/<path>

πŸ“Œ This link is used to fetch your report data.


πŸ”‘ Step 3: Authorize & Get Tokens

  1. Click Authorize

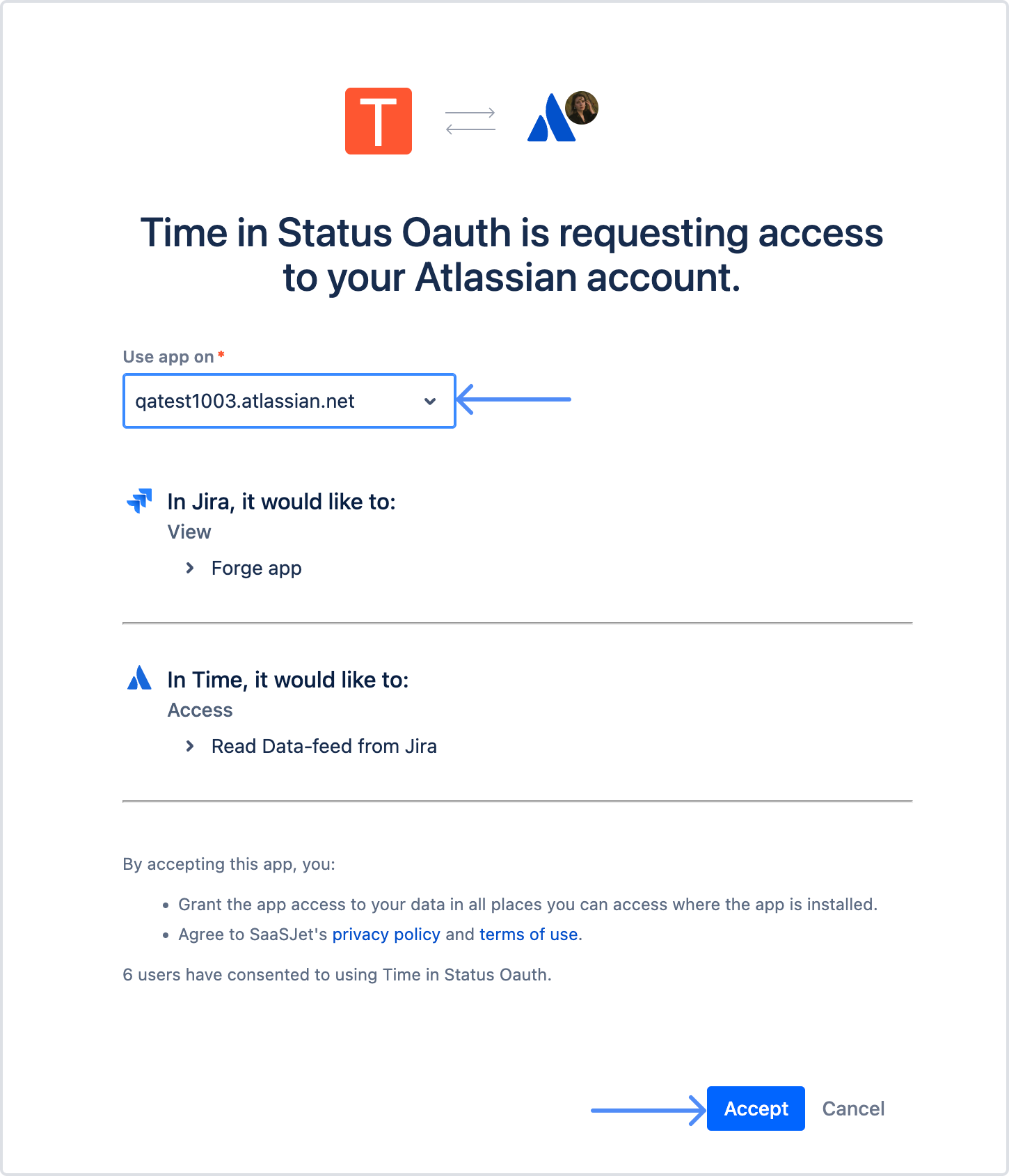

  2. Approve access on the Atlassian consent screen

  3. After redirect, copy the Authorization Code

⚠️ Important:

  • Code expires in 5 minutes

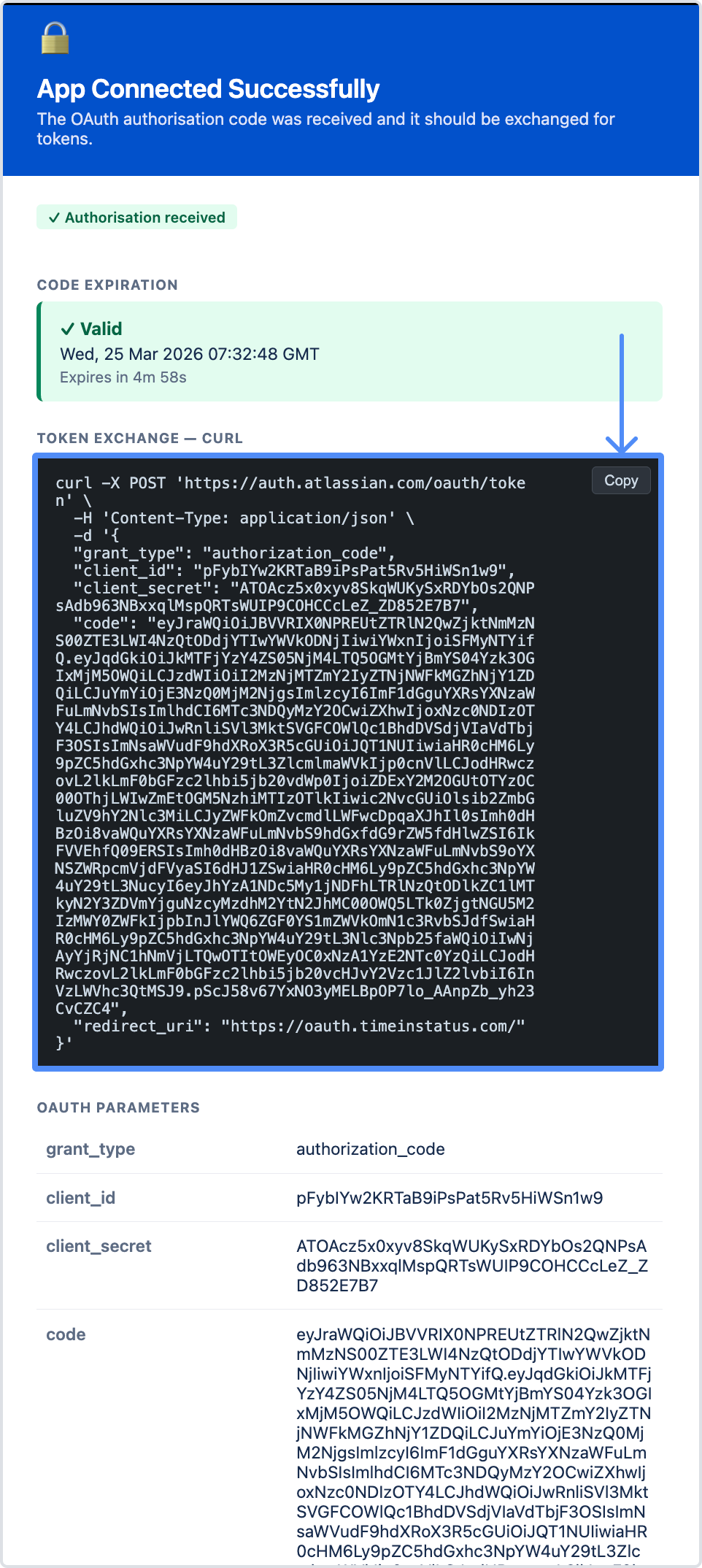

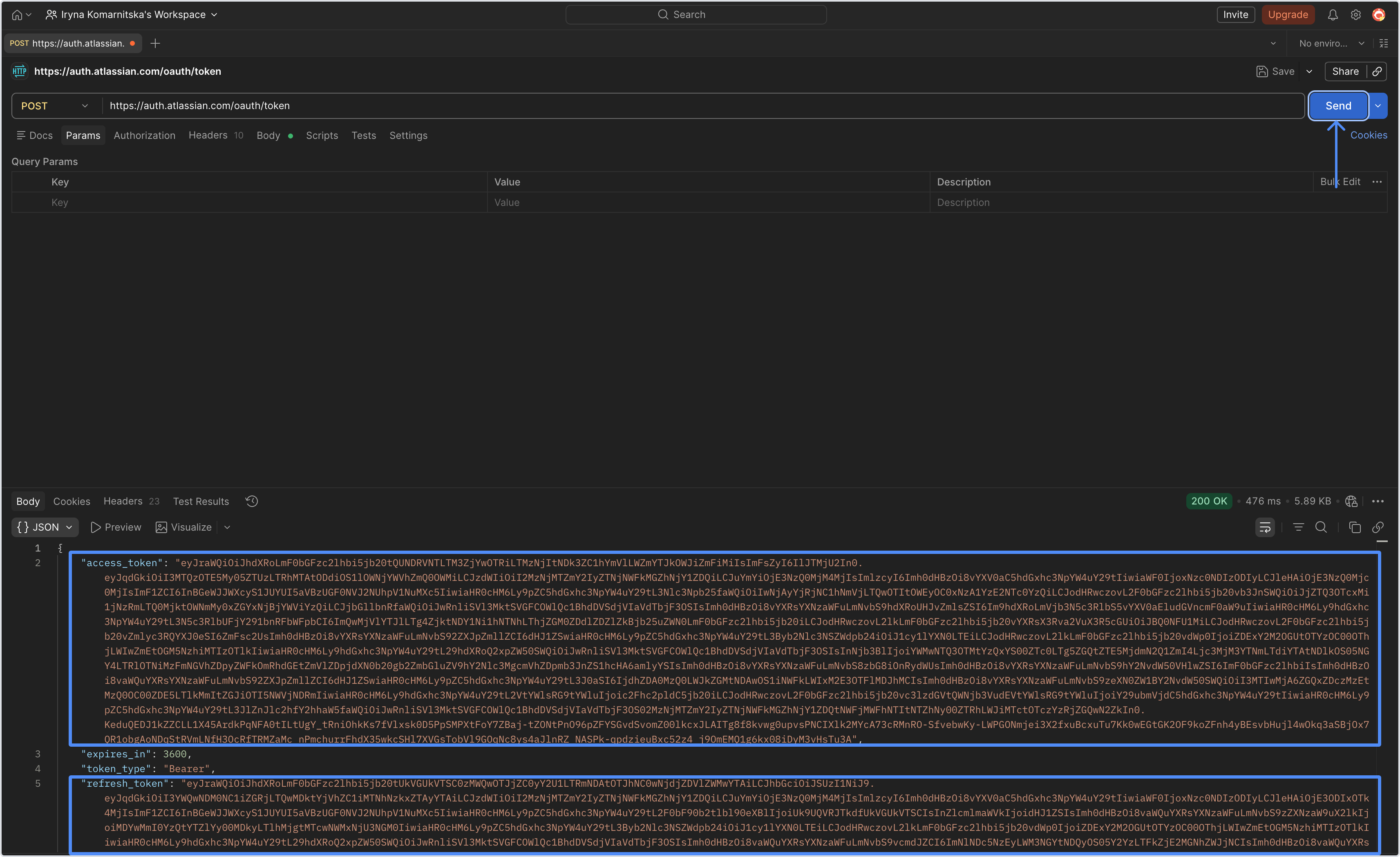

Exchange Code for Tokens


Use a tool like Postman to get:

  • Access Token (valid for 1 hour)

  • Refresh Token (valid for 90 days)

These tokens are required for API requests.


πŸ“Š Step 4: Import Data into Google Sheets

Quick Setup

  1. Open Google Sheets

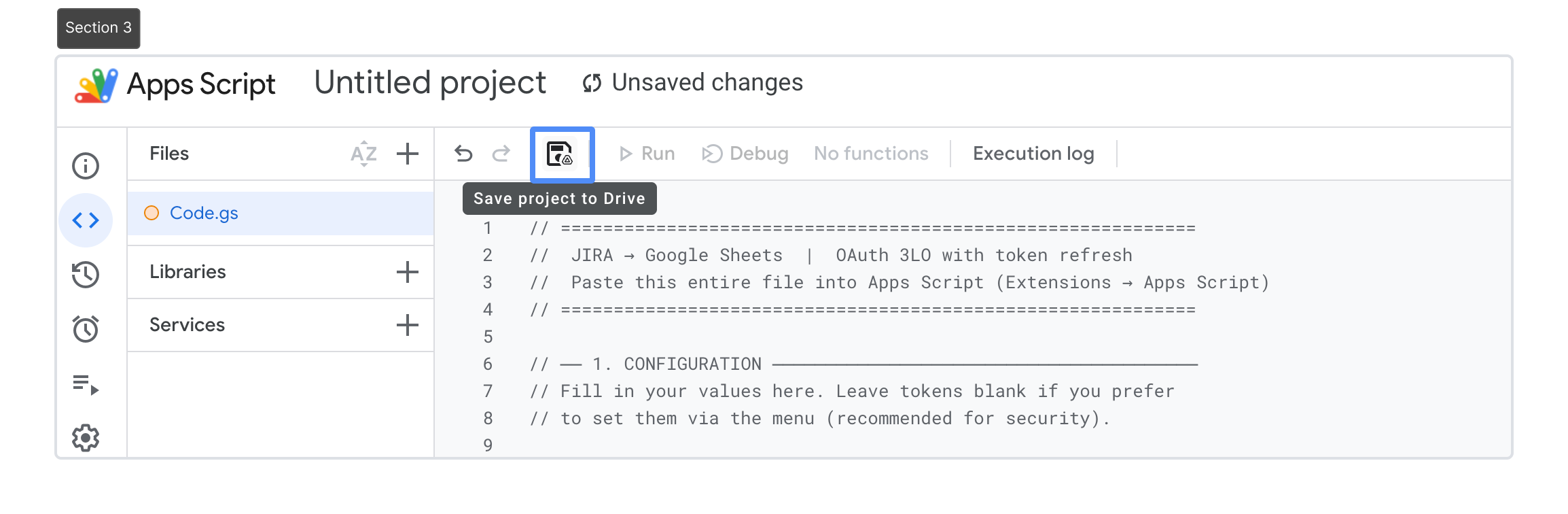

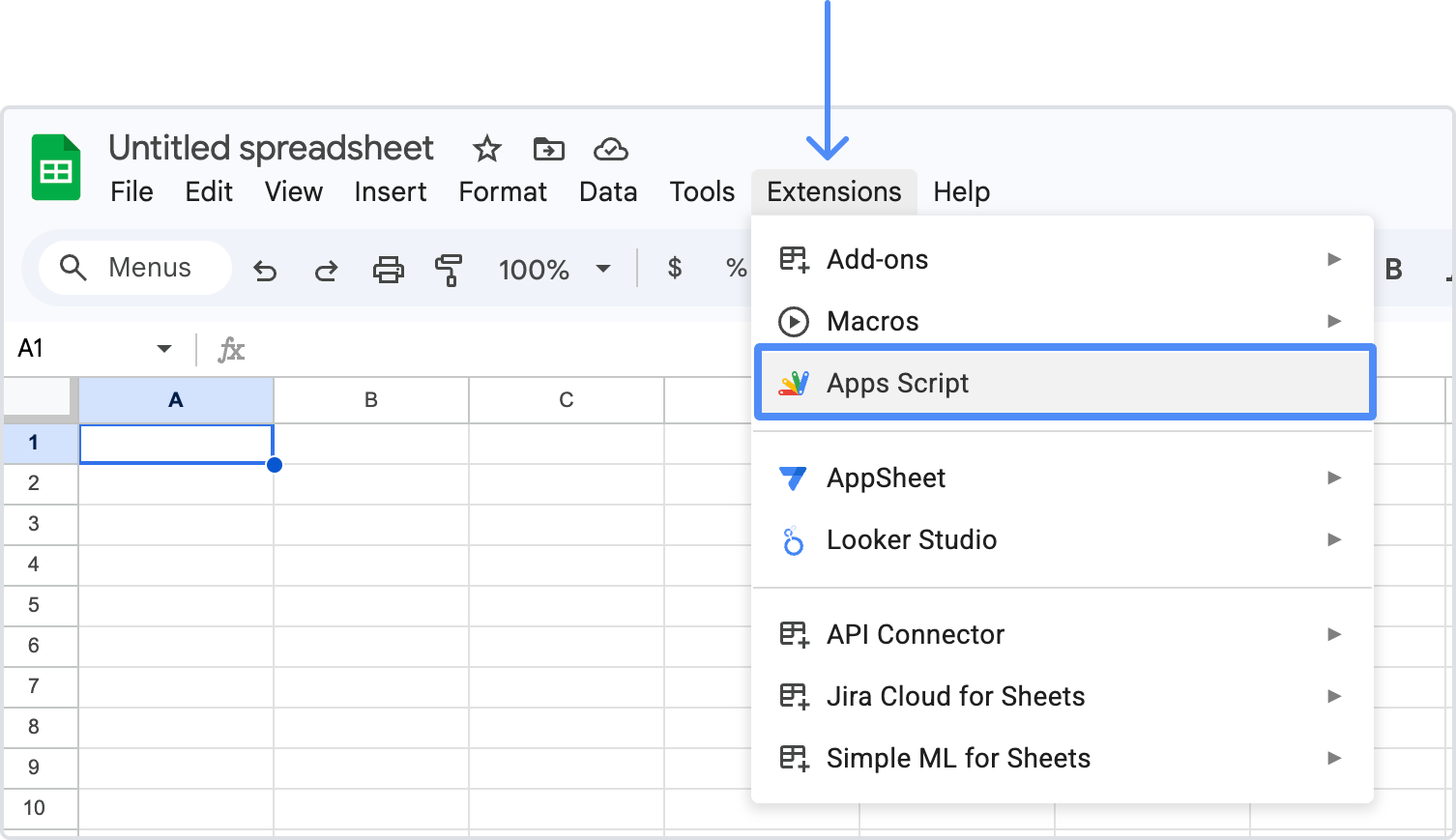

  2. Go to Extensions β†’ Apps Script

  1. Paste the provided script

CODE
// ============================================================
//  JIRA β†’ Google Sheets  |  OAuth 3LO with token refresh
//  Paste this entire file into Apps Script (Extensions β†’ Apps Script)
// ============================================================

// ── 1. CONFIGURATION ────────────────────────────────────────
// Fill in your values here. Leave tokens blank if you prefer
// to set them via the menu (recommended for security).

const CONFIG = {

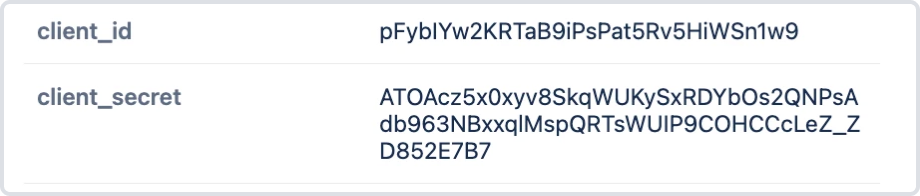

  // Your Atlassian OAuth 2.0 app credentials
  // Found at: https://developer.atlassian.com/console/myapps/
  CLIENT_ID:     "",   // e.g. "m507qTf5IM8PNpE0WCYKyEj0RQYddbGq"
  CLIENT_SECRET: "",   // e.g. "ATOAxxxxxx..."

  // Name of the sheet tab where data will be written
  SHEET_NAME: "Jira Data",
};

// NOTE: DATA_FEED_URL is stored securely in Script Properties.
// Set it via: πŸ”„ Jira Sync β†’ βš™οΈ Save Data Feed URL

// Atlassian token endpoint
const TOKEN_URL = "https://auth.atlassian.com/oauth/token";

// ── 2. TOKEN HELPERS (stored securely in Script Properties) ──

function getProps() {
  return PropertiesService.getScriptProperties();
}

function saveTokens(accessToken, refreshToken) {
  const props = getProps();
  props.setProperty("ACCESS_TOKEN",  accessToken);
  props.setProperty("REFRESH_TOKEN", refreshToken);
  Logger.log("βœ… Tokens saved to Script Properties.");
}

function getAccessToken()  { return getProps().getProperty("ACCESS_TOKEN");  }
function getRefreshToken() { return getProps().getProperty("REFRESH_TOKEN"); }
function getDataFeedUrl()  { return getProps().getProperty("DATA_FEED_URL");  }

// ── 3. TOKEN EXPIRY CHECK ─────────────────────────────────────

// How many days before expiry to start warning
const WARN_DAYS_BEFORE = 7;

/**
 * Decodes a JWT and returns its payload as an object.
 * Works without any external library β€” JWTs are just base64url-encoded JSON.
 */
function decodeJwtPayload(token) {
  try {
    const base64Url = token.split(".")[1];
    // base64url β†’ base64
    const base64 = base64Url.replace(/-/g, "+").replace(/_/g, "/");
    const json    = Utilities.newBlob(Utilities.base64Decode(base64)).getDataAsString();
    return JSON.parse(json);
  } catch (e) {
    Logger.log("⚠️ Could not decode JWT: " + e.message);
    return null;
  }
}

/**
 * Returns the number of days until the refresh token expires.
 * Returns null if the token cannot be decoded.
 */
function getRefreshTokenDaysLeft() {
  const token = getRefreshToken();
  if (!token) return null;

  const payload = decodeJwtPayload(token);
  if (!payload || !payload.exp) return null;

  const expiresAt  = new Date(payload.exp * 1000);
  const now        = new Date();
  const msLeft     = expiresAt - now;
  return Math.floor(msLeft / (1000 * 60 * 60 * 24));
}

/**
 * Checks the refresh token expiry and:
 *  - Sends an email warning if within WARN_DAYS_BEFORE days
 *  - Shows a popup if called from the UI (showUiAlert = true)
 * Called automatically by syncJiraData() and by the daily warning trigger.
 */
function checkTokenExpiry(showUiAlert) {
  const daysLeft = getRefreshTokenDaysLeft();

  if (daysLeft === null) {
    Logger.log("⚠️ Could not determine refresh token expiry.");
    return;
  }

  const expiryDate = new Date(decodeJwtPayload(getRefreshToken()).exp * 1000)
    .toLocaleDateString();

  Logger.log(`ℹ️ Refresh token expires in ${daysLeft} day(s) (${expiryDate}).`);

  if (daysLeft < 0) {
    const msg = `πŸ”΄ Your refresh token EXPIRED on ${expiryDate}.\nYou must re-authorize via the 3LO flow and save new tokens.`;
    Logger.log("πŸ”΄ " + msg);
    if (showUiAlert) SpreadsheetApp.getUi().alert("Token Expired ❌", msg, SpreadsheetApp.getUi().ButtonSet.OK);
    sendExpiryEmail("EXPIRED", expiryDate, daysLeft);

  } else if (daysLeft <= WARN_DAYS_BEFORE) {
    const msg = `⚠️ Your refresh token expires in ${daysLeft} day(s) (${expiryDate}).\nPlease re-authorize soon and save new tokens via the menu.`;
    Logger.log("⚠️ " + msg);
    if (showUiAlert) SpreadsheetApp.getUi().alert("Token Expiry Warning ⚠️", msg, SpreadsheetApp.getUi().ButtonSet.OK);
    sendExpiryEmail("WARNING", expiryDate, daysLeft);
  }
}

/**
 * Sends an email to the script owner when the token is expiring soon or expired.
 * Only sends once per day to avoid spam (tracked via Script Properties).
 */
function sendExpiryEmail(type, expiryDate, daysLeft) {
  const props   = getProps();
  const today   = new Date().toDateString();
  const lastKey = "LAST_EXPIRY_EMAIL_" + type;

  // Don't send more than once per day
  if (props.getProperty(lastKey) === today) return;
  props.setProperty(lastKey, today);

  const email   = Session.getEffectiveUser().getEmail();
  const subject = type === "EXPIRED"
    ? "πŸ”΄ Jira Sync: Refresh token has EXPIRED"
    : `⚠️ Jira Sync: Refresh token expires in ${daysLeft} day(s)`;

  const body = type === "EXPIRED"
    ? `Your Jira sync refresh token expired on ${expiryDate}.\n\nThe daily sync has stopped working. Please re-authorize via the 3LO flow and save new tokens using:\n  πŸ”„ Jira Sync β†’ βš™οΈ Save tokens`
    : `Your Jira sync refresh token will expire on ${expiryDate} (in ${daysLeft} day(s)).\n\nPlease re-authorize soon via the 3LO flow and save new tokens using:\n  πŸ”„ Jira Sync β†’ βš™οΈ Save tokens`;

  GmailApp.sendEmail(email, subject, body);
  Logger.log(`πŸ“§ Expiry warning email sent to ${email}.`);
}

/**
 * Menu action: show token status in a popup.
 */
function showTokenStatus() {
  const daysLeft = getRefreshTokenDaysLeft();
  const ui = SpreadsheetApp.getUi();

  if (daysLeft === null) {
    ui.alert("Token Status", "No refresh token found. Please save your tokens via βš™οΈ Save tokens.", ui.ButtonSet.OK);
    return;
  }

  const expiryDate = new Date(decodeJwtPayload(getRefreshToken()).exp * 1000).toLocaleDateString();

  let icon, status;
  if (daysLeft < 0) {
    icon = "πŸ”΄"; status = `EXPIRED on ${expiryDate}`;
  } else if (daysLeft <= WARN_DAYS_BEFORE) {
    icon = "⚠️"; status = `Expires in ${daysLeft} day(s) β€” ${expiryDate}`;
  } else {
    icon = "βœ…"; status = `Valid for ${daysLeft} more day(s) β€” expires ${expiryDate}`;
  }

  ui.alert("Token Status " + icon, `Refresh token: ${status}`, ui.ButtonSet.OK);
}

// ── 4. REFRESH THE ACCESS TOKEN ──────────────────────────────

function refreshAccessToken() {
  const refreshToken = getRefreshToken();
  if (!refreshToken) throw new Error("No refresh token stored. Run Setup β†’ Save Tokens first.");

  const clientId     = CONFIG.CLIENT_ID     || getProps().getProperty("CLIENT_ID");
  const clientSecret = CONFIG.CLIENT_SECRET || getProps().getProperty("CLIENT_SECRET");
  if (!clientId || !clientSecret) {
    throw new Error("CLIENT_ID and CLIENT_SECRET are required. Set them in CONFIG or via the menu.");
  }

  const payload = {
    grant_type:    "refresh_token",
    client_id:     clientId,
    client_secret: clientSecret,
    refresh_token: refreshToken,
  };

  const response = UrlFetchApp.fetch(TOKEN_URL, {
    method:      "post",
    contentType: "application/x-www-form-urlencoded",
    payload:     payload,
    muteHttpExceptions: true,
  });

  const code = response.getResponseCode();
  const body = JSON.parse(response.getContentText());

  if (code !== 200) {
    throw new Error(`Token refresh failed (${code}): ${JSON.stringify(body)}`);
  }

  // Atlassian rotates the refresh token on each use
  saveTokens(body.access_token, body.refresh_token || refreshToken);
  Logger.log("πŸ”„ Access token refreshed successfully.");
  return body.access_token;
}

// ── 4. FETCH DATA FROM THE API ───────────────────────────────

function fetchDataFeed(accessToken) {
  const url = CONFIG.DATA_FEED_URL || getDataFeedUrl();
  if (!url) throw new Error("No Data Feed URL stored. Use πŸ”„ Jira Sync β†’ βš™οΈ Save Data Feed URL.");

  const response = UrlFetchApp.fetch(url, {
    method:  "get",
    headers: { Authorization: "Bearer " + accessToken },
    muteHttpExceptions: true,
  });

  const code = response.getResponseCode();

  // 401 = token expired β†’ refresh and retry once
  if (code === 401) {
    Logger.log("⚠️ Access token expired. Refreshing...");
    const newToken = refreshAccessToken();
    return fetchDataFeed(newToken);
  }

  if (code !== 200) {
    throw new Error(`API request failed (${code}): ${response.getContentText()}`);
  }

  return JSON.parse(response.getContentText());
}

// ── 5. WRITE DATA TO SHEET ────────────────────────────────────

function writeToSheet(data) {
  const ss    = SpreadsheetApp.getActiveSpreadsheet();
  let   sheet = ss.getSheetByName(CONFIG.SHEET_NAME);

  // Create the sheet if it doesn't exist
  if (!sheet) {
    sheet = ss.insertSheet(CONFIG.SHEET_NAME);
    Logger.log(`πŸ“„ Created sheet: "${CONFIG.SHEET_NAME}"`);
  }

  sheet.clearContents();

  // ── Normalize the API response ──
  // The datafeed may return an array at the top level, or inside a key.
  // Adjust the path below if your feed has a different structure.
  let rows = [];

  if (Array.isArray(data)) {
    rows = data;
  } else if (data.items && Array.isArray(data.items)) {
    rows = data.items;
  } else if (data.data && Array.isArray(data.data)) {
    rows = data.data;
  } else if (data.results && Array.isArray(data.results)) {
    rows = data.results;
  } else {
    // Fallback: write raw JSON so you can inspect the structure
    sheet.getRange(1, 1).setValue("Raw API Response (adjust writeToSheet to match your structure):");
    sheet.getRange(2, 1).setValue(JSON.stringify(data, null, 2));
    Logger.log("⚠️ Could not detect row array. Raw JSON written to sheet. Check the structure and update writeToSheet().");
    return;
  }

  if (rows.length === 0) {
    sheet.getRange(1, 1).setValue("No data returned by the API.");
    return;
  }

  // Build header row from the keys of the first object
  const headers = Object.keys(rows[0]);
  const output  = [headers];

  // Build data rows
  rows.forEach(row => {
    const rowValues = headers.map(h => {
      const val = row[h];
      return (val !== null && typeof val === "object") ? JSON.stringify(val) : val;
    });
    output.push(rowValues);
  });

  // Write everything in one call (fast)
  sheet.getRange(1, 1, output.length, output[0].length).setValues(output);

  // Style the header row
  const headerRange = sheet.getRange(1, 1, 1, headers.length);
  headerRange.setFontWeight("bold");
  headerRange.setBackground("#4a86e8");
  headerRange.setFontColor("#ffffff");
  sheet.setFrozenRows(1);
  sheet.autoResizeColumns(1, headers.length);

  // Timestamp
  sheet.getRange(output.length + 2, 1).setValue("Last updated: " + new Date().toLocaleString());

  Logger.log(`βœ… Written ${rows.length} rows Γ— ${headers.length} columns to "${CONFIG.SHEET_NAME}".`);
  SpreadsheetApp.getUi().alert(`βœ… Done! ${rows.length} rows imported to "${CONFIG.SHEET_NAME}".`);
}

// ── 6. MAIN ENTRY POINT ───────────────────────────────────────

function syncJiraData() {
  try {
    let token = getAccessToken();
    if (!token) throw new Error("No access token stored. Use Setup β†’ Save Tokens first.");

    const url = CONFIG.DATA_FEED_URL || getDataFeedUrl();
    if (!url) throw new Error("No Data Feed URL stored. Use πŸ”„ Jira Sync β†’ βš™οΈ Save Data Feed URL.");

    // Warn if refresh token is close to expiry
    checkTokenExpiry(true);

    Logger.log("πŸš€ Fetching data from Jira datafeed...");
    const data = fetchDataFeed(token);
    writeToSheet(data);
  } catch (e) {
    Logger.log("❌ Error: " + e.message);
    SpreadsheetApp.getUi().alert("❌ Error:\n\n" + e.message);
  }
}

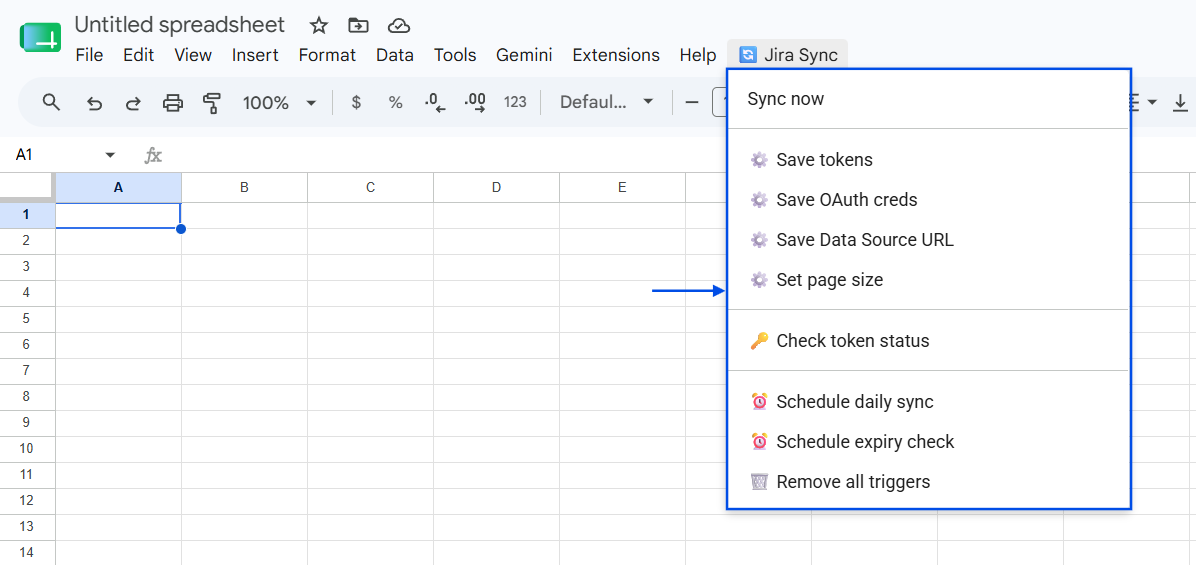

// ── 7. MENU + SETUP UI ────────────────────────────────────────

function onOpen() {
  SpreadsheetApp.getUi()
    .createMenu("πŸ”„ Jira Sync")
    .addItem("Sync now",                    "syncJiraData")
    .addSeparator()
    .addItem("βš™οΈ Save tokens",              "promptSaveTokens")
    .addItem("βš™οΈ Save OAuth creds",         "promptSaveOAuthCreds")
    .addItem("βš™οΈ Save Data Feed URL",       "promptSaveDataFeedUrl")
    .addSeparator()
    .addItem("πŸ”‘ Check token status",       "showTokenStatus")
    .addSeparator()
    .addItem("⏰ Schedule daily sync",      "createDailyTrigger")
    .addItem("⏰ Schedule expiry check",    "createExpiryCheckTrigger")
    .addItem("πŸ—‘οΈ Remove all triggers",     "removeAllTriggers")
    .addToUi();
}

function promptSaveTokens() {
  const ui = SpreadsheetApp.getUi();

  const accessResp = ui.prompt(
    "Save Access Token",
    "Paste your current access token:",
    ui.ButtonSet.OK_CANCEL
  );
  if (accessResp.getSelectedButton() !== ui.Button.OK) return;

  const refreshResp = ui.prompt(
    "Save Refresh Token",
    "Paste your refresh token:",
    ui.ButtonSet.OK_CANCEL
  );
  if (refreshResp.getSelectedButton() !== ui.Button.OK) return;

  saveTokens(accessResp.getResponseText().trim(), refreshResp.getResponseText().trim());
  ui.alert("βœ… Tokens saved securely in Script Properties.");
}

function promptSaveOAuthCreds() {
  const ui = SpreadsheetApp.getUi();
  const props = getProps();

  const idResp = ui.prompt(
    "Save OAuth Client ID",
    "Paste your Atlassian OAuth Client ID:",
    ui.ButtonSet.OK_CANCEL
  );
  if (idResp.getSelectedButton() !== ui.Button.OK) return;

  const secResp = ui.prompt(
    "Save OAuth Client Secret",
    "Paste your Atlassian OAuth Client Secret:",
    ui.ButtonSet.OK_CANCEL
  );
  if (secResp.getSelectedButton() !== ui.Button.OK) return;

  props.setProperty("CLIENT_ID",     idResp.getResponseText().trim());
  props.setProperty("CLIENT_SECRET", secResp.getResponseText().trim());
  ui.alert("βœ… OAuth credentials saved securely.");
}

function promptSaveDataFeedUrl() {
  const ui    = SpreadsheetApp.getUi();
  const props = getProps();

  // Pre-fill the current URL so the user can see and edit it
  const current = props.getProperty("DATA_FEED_URL") || "";
  const hint    = current
    ? "Current URL (paste a new one to replace it):\n" + current
    : "Paste the Data Feed URL from your Jira report:";

  const resp = ui.prompt("Save Data Feed URL", hint, ui.ButtonSet.OK_CANCEL);
  if (resp.getSelectedButton() !== ui.Button.OK) return;

  const newUrl = resp.getResponseText().trim();
  if (!newUrl) { ui.alert("No URL entered β€” nothing was saved."); return; }

  props.setProperty("DATA_FEED_URL", newUrl);
  ui.alert("βœ… Data Feed URL saved.\n\nYou can now run Sync now.");
}

// ── 8. TIME-BASED TRIGGERS ───────────────────────────────────

function createDailyTrigger() {
  // Remove existing sync triggers first to avoid duplicates
  ScriptApp.getProjectTriggers()
    .filter(t => t.getHandlerFunction() === "syncJiraData")
    .forEach(t => ScriptApp.deleteTrigger(t));

  ScriptApp.newTrigger("syncJiraData")
    .timeBased()
    .everyDays(1)
    .atHour(8)   // 08:00 in the script's timezone
    .create();

  SpreadsheetApp.getUi().alert("⏰ Daily sync scheduled for 8 AM.");
}

/**
 * Sets up a daily trigger that checks token expiry and sends
 * an email warning when the refresh token is close to expiring.
 */
function createExpiryCheckTrigger() {
  // Remove existing expiry check triggers first
  ScriptApp.getProjectTriggers()
    .filter(t => t.getHandlerFunction() === "dailyExpiryCheck")
    .forEach(t => ScriptApp.deleteTrigger(t));

  ScriptApp.newTrigger("dailyExpiryCheck")
    .timeBased()
    .everyDays(1)
    .atHour(9)   // 09:00 β€” runs after the sync trigger
    .create();

  SpreadsheetApp.getUi().alert("⏰ Daily token expiry check scheduled for 9 AM.\nYou will receive an email if the token is expiring within " + WARN_DAYS_BEFORE + " days.");
}

/**
 * Called by the daily expiry check trigger.
 * Does NOT show a UI popup (runs headlessly); sends email only.
 */
function dailyExpiryCheck() {
  checkTokenExpiry(false);
}

function removeAllTriggers() {
  ScriptApp.getProjectTriggers().forEach(t => ScriptApp.deleteTrigger(t));
  SpreadsheetApp.getUi().alert("πŸ—‘οΈ All triggers removed.");
}
  1. Save and refresh the spreadsheet

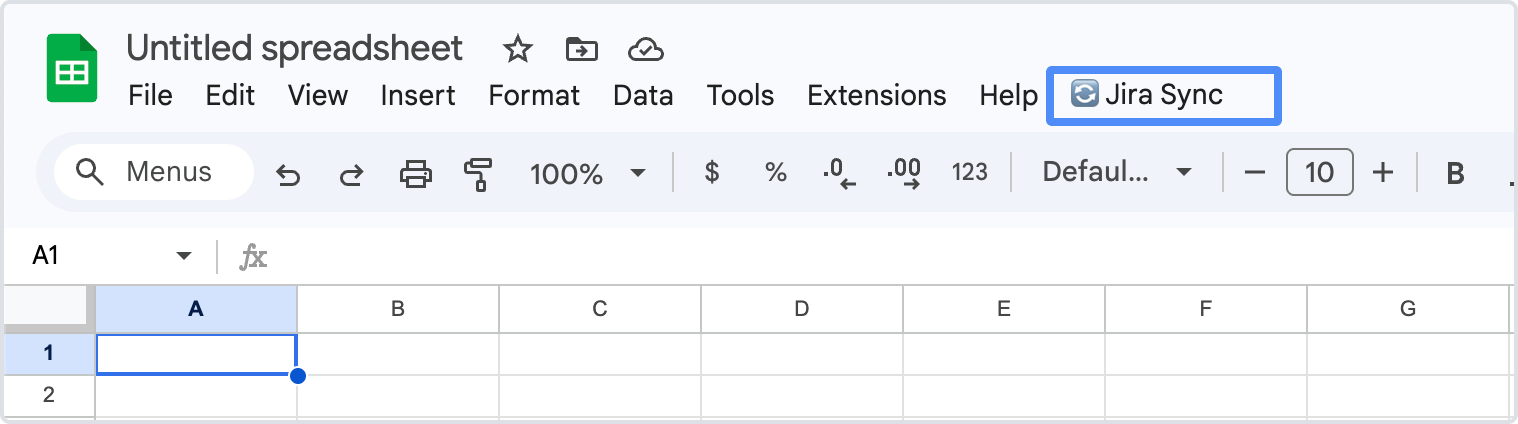

After refresh, you will see a new menu: πŸ‘‰ πŸ”„ Jira Sync

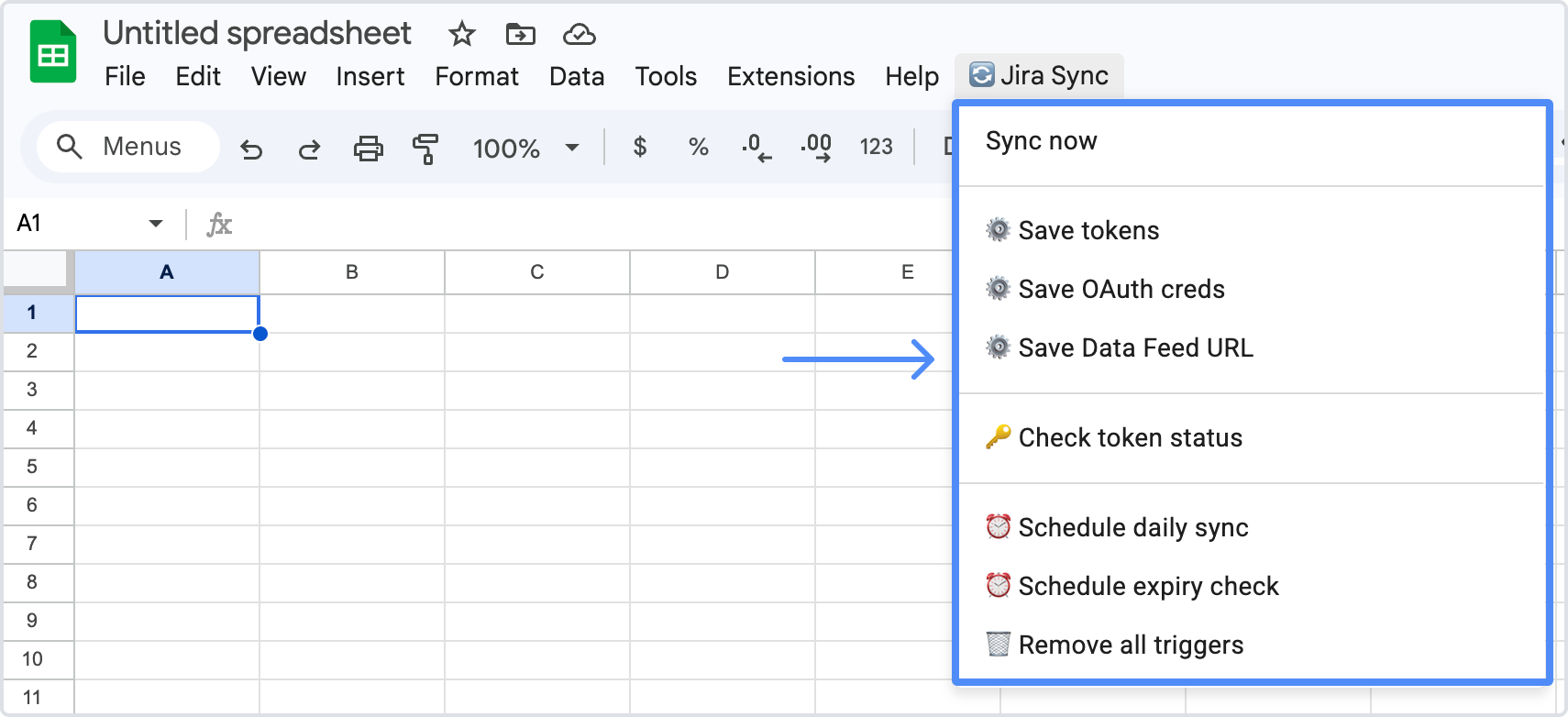

βš™οΈ Configure the Script

From the menu:


1. Save OAuth credentials

CODE
πŸ”„ Jira Sync β†’ βš™οΈ Save OAuth creds

Add from step 3:

  • Client ID

  • Client Secret


2. Save tokens

CODE
πŸ”„ Jira Sync β†’ βš™οΈ Save tokens

Add from step 3 (this is exactly what you exchanged in Postman):

  • Access token

  • Refresh token

3. Save Data Feed URL

CODE
πŸ”„ Jira Sync β†’ βš™οΈ Save Data Feed URL

Paste your generated API link from step 2.

▢️ Step 5: Run the Import

Click:

CODE
πŸ”„ Jira Sync β†’ Sync now

βœ” The script will:

  • Fetch data from API

  • Automatically refresh expired tokens

  • Write structured data into your sheet

  • Format headers and add timestamp

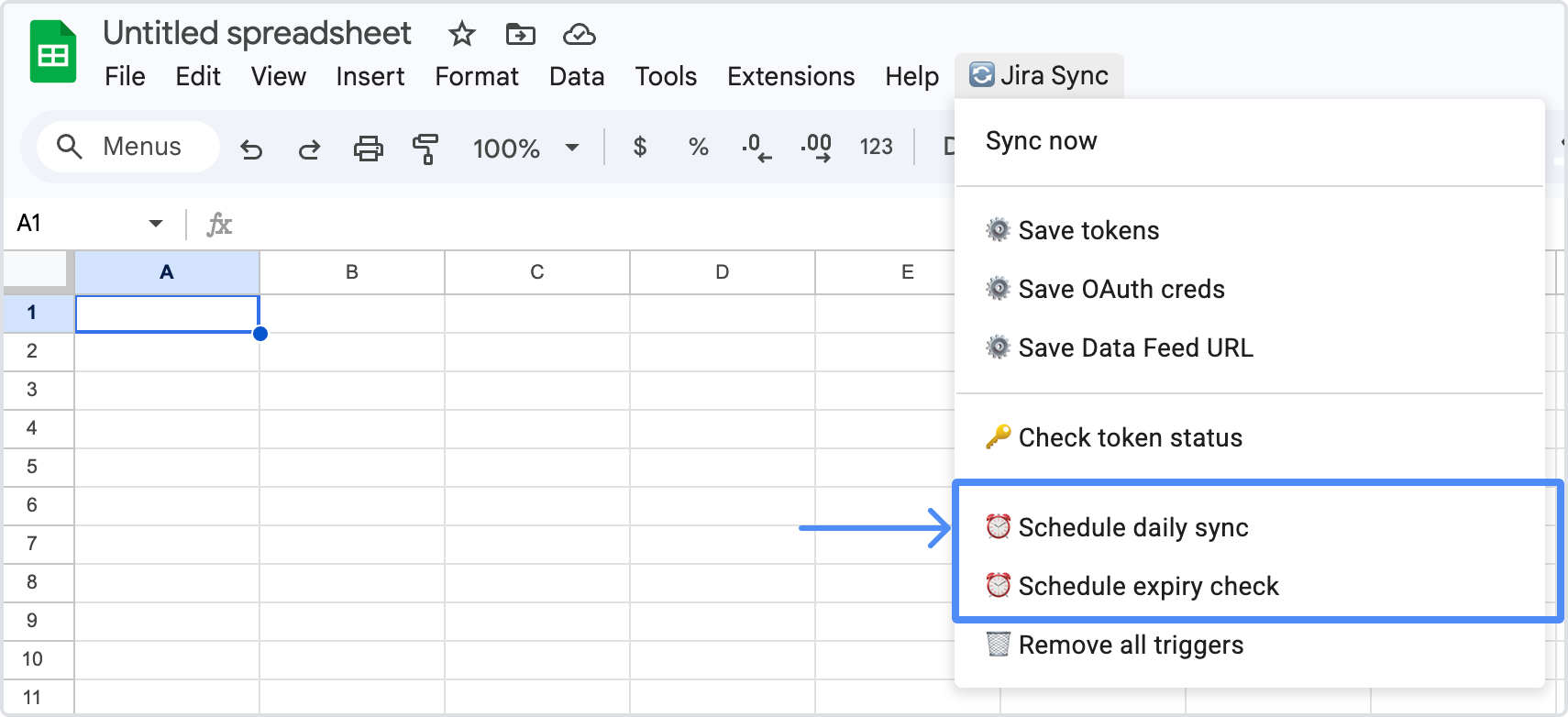

πŸ”„ Automation (Optional)

You can automate syncing:


Daily data refresh

CODE
πŸ”„ Jira Sync β†’ ⏰ Schedule daily sync

Token expiration monitoring

CODE
πŸ”„ Jira Sync β†’ ⏰ Schedule expiry check

βœ” You’ll get email alerts if your token is about to expire

πŸ” Token Management

  • Access token β†’ expires in 1 hour

  • Refresh token β†’ expires in 90 days

The script:

  • Automatically refreshes access tokens

  • Warns you before refresh token expires

  • Sends email notifications if needed

⚠️ Limitations & Notes

  • Max request time: 25 seconds

  • Max payload: ~5 MB

  • Large reports may fail β†’ narrow filters

  • Data visibility depends on user permissions

πŸ›  Troubleshooting

❌ No data returned

  • Check permissions in Jira

  • Verify preset is saved

  • Confirm token is valid

❌ Token expired

  • Re-run authorization flow

  • Save new tokens

❌ Payload too large

  • Reduce:

    • Date range

    • Number of projects

    • Filters

πŸ’‘ Pro Tip

Once set up, your Google Sheet becomes a live reporting dashboard, automatically updated from Jira.

 If you need help or want to ask questions, please contact SaaSJet Support or email us at support@saasjet.atlassian.net

Haven't used this add-on yet? Try it now!

JavaScript errors detected

Please note, these errors can depend on your browser setup.

If this problem persists, please contact our support.
